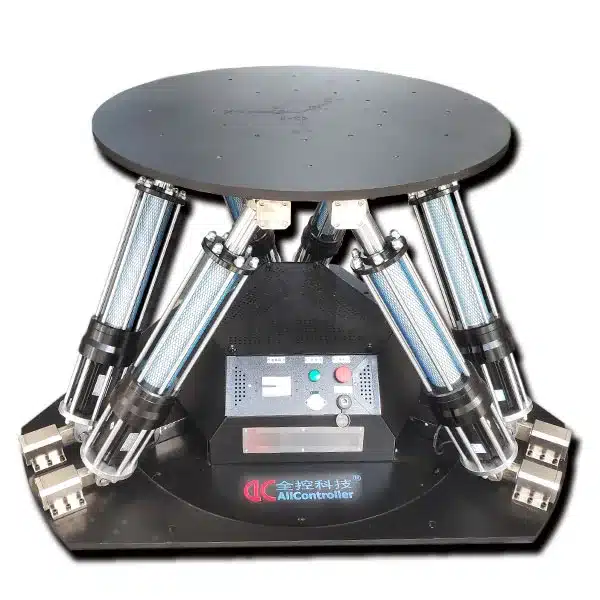

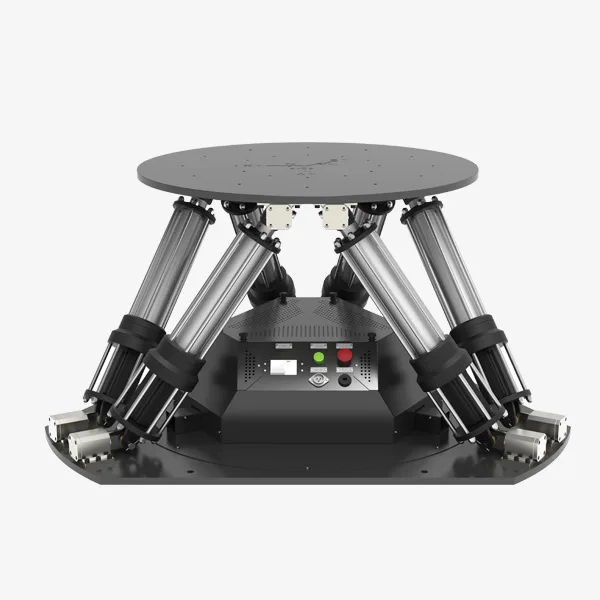

Customized industrial-grade 6DOF Motion Platform

The 6 Degrees of Freedom (6DOF) motion platform is an advanced system that can simulate all possible motions of an object in three-dimensional space. It achieves independent motion of an object in three translational and three rotational directions through precise control. The six degrees of freedom include:

Translation:

Surge: Moving forward and backward

Sway: Moving left and right

Heave: Moving up and down

Rotation:

Roll: Rotating around the front-back axis (tilting left and right)

Pitch: Rotating around the left-right axis (tilting front and back)

Yaw: Rotating around the vertical axis (turning left and right)

This comprehensive motion capability provides the ultimate immersion and real feedback for demanding applications such as flight simulation, racing training, and industrial testing.

The core advantage of the Allcontroller 6DOF motion platform lies in its superior technology and design:

Direct-connected servo electric cylinder structure: Using advanced servo electric cylinders (linear actuators) as the core drive components, it ensures millisecond response speed and sub-millimeter positioning accuracy, achieving smooth, dynamic movement, and is almost maintenance-free.

Self-developed control unit: Equipped with Motionplat’s self-developed control unit, based on a high-performance MCU, supports real-time data communication, and can seamlessly integrate mainstream simulation software. Provides multiple operating modes such as fixed action script reading, conventional action and manual control.

High integration and compatibility: Supports multiple bus control methods such as CANopen, RS485, EtherCAT, EtherNet/IP, etc., to achieve high integration and system compatibility.

Allcontroller’s 6DOF motion platform has excellent load capacity and high precision:

Load capacity: Our standard platform supports a wide range of loads from 100 kg to 50,000 kg. For high-load scenarios such as aerospace and heavy vehicle testing, we can provide customized solutions with reinforced structures with loads exceeding 10 tons, and are equipped with redundant electrical systems to ensure stable operation under extreme conditions.

Motion accuracy: The platform is driven by high-precision servo motors with a repeatability of ±0.01mm and a dynamic response time of less than 10ms. For high-frequency scenarios such as automotive testing, an optional high-frequency response module up to 100Hz can provide accurate real-time feedback.

Yes, Allcontroller 6DOF motion platform is fully compatible with mainstream third-party simulation software (such as MATLAB, Unity3D, etc.). We provide open API interface, support CAN, RS232, RS485 and other communication interfaces, as well as SD card file reading and writing, to ensure that your platform can be seamlessly integrated with the existing system to achieve flexible control and data interaction.

Yes, we provide comprehensive non-standard customization services to meet customers’ unique space size and performance requirements. Our customization process usually includes six steps:

Demand matching analysis: In-depth understanding of your project goals and specific needs.

Customized solution development: Provide tailored technical solutions and designs.

Cooperation confirmation: Both parties confirm the details of the solution and sign a cooperation agreement.

Processing and production: Strictly follow ISO standards for manufacturing and quality control.

Factory inspection and acceptance: Customers can choose on-site or remote video acceptance.

Transportation and after-sales support: Ensure safe delivery of products and provide lifelong technical support.

Allcontroller is committed to providing the highest quality products:

Strict quality standards: We strictly follow the ISO 9001:2015 quality management system and CE certification standards.

Industrial-grade components: All platforms use industrial-grade components to ensure durability in harsh environments and provide long-term reliable operation.

Rich experience: With more than 15 years of industry experience, we have accumulated deep technical and project management capabilities in the field of motion platforms.

Strict testing: Each platform undergoes rigorous factory testing and verification before leaving the factory to ensure that the performance meets expectations.

Since 6DOF motion platforms are usually customized products, the specific price will vary depending on factors such as load capacity, range of motion, accuracy requirements, customization functions, application scenarios, and selected configurations. We encourage you to submit your detailed requirements through the “Get a Custom Quote” form on the page, and our professional team will contact you within 24 hours to provide accurate customized quotes and solutions. We are committed to providing cost-effective industrial-grade products to ensure that your investment is worthwhile.

We provide one-stop service from demand analysis to lifelong after-sales support to ensure the long-term stable operation of your platform:

Installation and debugging: Provide professional installation guidance and on-site debugging services.

Operation training: Provide comprehensive operation and maintenance training for your team.

Technical support: Provide remote technical support, quickly respond to and solve any problems you encounter during use.

Overseas customer acceptance: Overseas customers are welcome to come to the Chinese factory for on-site acceptance; if it is inconvenient to come, we can provide Google conference video acceptance or sports platform indicator video according to your requirements.
