Introduction
In the world of precision engineering, few mechanisms are as versatile as the Stewart Platform. However, for engineers and project managers, finding the right hardware starts with understanding the specific 6DOF motion platform application required for their project.
Whether powered by hydraulic rams or modern, high-precision electric linear actuators, these platforms bridge the gap between digital simulation and physical reality. For engineers, procurements managers, and developers, understanding the scope of 6DOF applications is key to selecting the right equipment.
At Allcontroller, we specialize in designing custom high-fidelity motion solutions. Today, we break down the critical use cases driving the demand for 6DOF technology globally.
Table of Contents
6DOF Motion Platform
Professional Flight Simulation & Pilot Training
The most widely recognized 6DOF motion platform application is undoubtedly in the aviation sector. Our self-developed 6DOF motion platform can be applied to aviation simulation, including flight motion simulation, simulation training, flight event simulation, flight environment testing, and more. Whether you are conducting flight training or simulating or testing your flight environment, Allcontroller provides you with a variety of motion modes, offering high fidelity and realistic simulation of flight motion attitudes.
Scenario Replication: From the subtle high-frequency vibrations of a runway taxi to the violent jolts of clear-air turbulence or hard landings, 6DOF provides the muscle memory training essential for safety.
Helicopter & VTOL: The “Heave” (vertical movement) degree of freedom is particularly critical for rotary-wing aircraft training to simulate lift-off and hovering dynamics accurately.
Advanced Driving Simulators & Automotive R&D
While 3DOF is common in arcades, professional 6DOF motion platform application in the automotive industry focus on high-fidelity validation.
Vehicle Dynamics Testing (Vehicle-in-the-Loop): Manufacturers use large-scale 6DOF platforms to test suspension geometries and autonomous driving algorithms without hitting the track.

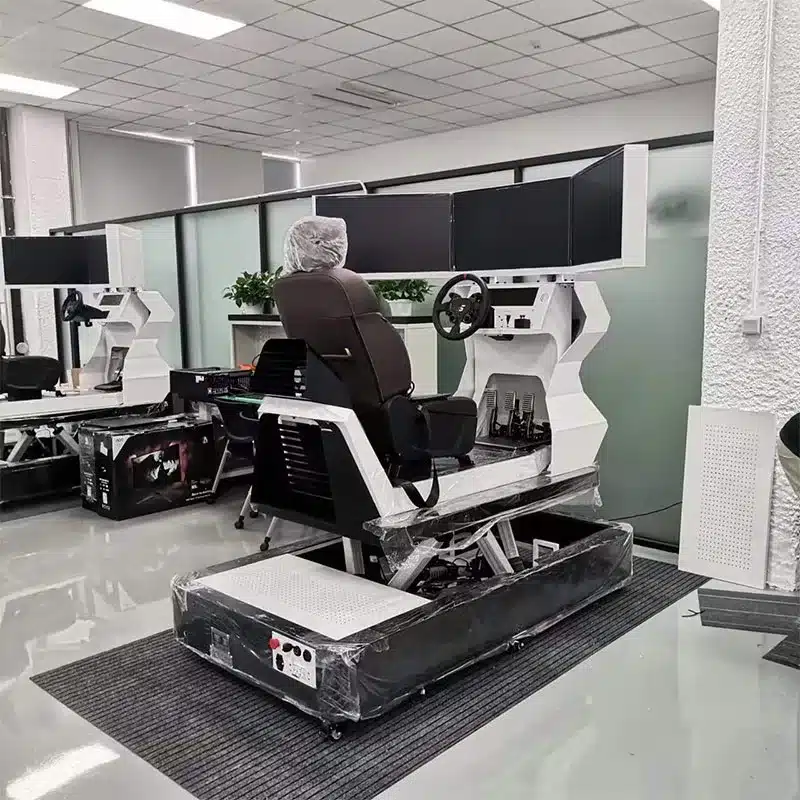

Sim Racing & Esports: For high-end professional racers, the platform conveys critical feedback—loss of traction (yaw/sway), road texture, and braking forces (surge)—allowing for millisecond reaction times.

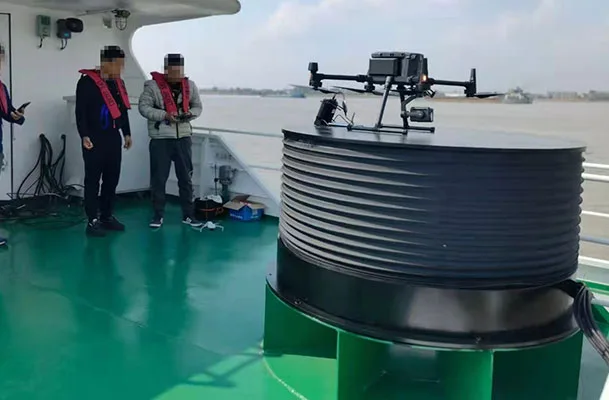

Offshore Engineering: Active Heave Compensation (AHC)
In the marine sector, the 6DOF motion platform application shifts from creating motion to canceling it. This is often referred to as a stabilization table.
Wave Compensation: By integrating with a Motion Reference Unit (MRU), the platform moves in the exact opposite direction of the ship’s roll, pitch, and heave. This keeps the top plate perfectly stationary relative to the horizon.
Safe Offshore Access: This technology is the backbone of Motion Compensated Gangways, allowing personnel to walk safely from a moving vessel to a fixed wind turbine.
Industrial Precision Positioning & Testing
Beyond simulation, a major 6DOF motion platform application involves static and dynamic positioning in laboratory environments.
Multi-Axis Shaker Tables (MAST): Automotive and aerospace components (like EV battery packs or fuel tanks) undergo rigorous durability testing on 6DOF shakers to simulate a lifetime of vibration and stress.
Antenna & Optics Alignment: For satellite communication (SATCOM) or astronomical telescopes, 6DOF hexapods provide micro-positioning capabilities to align lasers and sensors with extreme accuracy.
Entertainment, VR, and Cinematography
The immersive power of these systems has created a booming 6DOF motion platform application in the entertainment industry.
VFX & Camera Control: In modern filmmaking, robotic 6DOF arms can repeat complex camera moves perfectly, allowing for seamless CGI integration. Alternatively, actors can sit in a motion base (e.g., a cockpit mockup) to react to realistic physical forces, replacing “acting” the shake with feeling the shake.
4D Theaters & Dark Rides: Theme parks utilize heavy-duty hydraulic or electric 6DOF bases to carry dozens of passengers, synchronized perfectly with visual content for a “Flying Theater” experience.
FAQ
Why should I choose an electric servo 6DOF platform over a hydraulic system?
While hydraulic systems have traditionally been used for heavy payloads, all-electric servo motion platforms offer significant advantages for modern applications. They provide higher precision (micrometer-level accuracy), lower latency, and smoother operation, which is critical for VR and flight simulation. importantly, electric systems are virtually maintenance-free—requiring no oil changes, no pumps, and posing no risk of leakage, making them ideal for clean commercial, medical, and laboratory environments.
Can Allcontroller integrate with my existing simulation software (e.g., Unity, Unreal Engine, or Flight Sims)?
Yes. Our 6DOF platforms are designed with an open architecture. We provide a comprehensive SDK (Software Development Kit) and API that allows developers to easily interface with Unity 3D, Unreal Engine, and custom C++/C# applications. For standard simulators, our motion control software supports plug-and-play integration with popular titles like X-Plane, DCS World, Assetto Corsa, and Microsoft Flight Simulator, handling all telemetry data extraction and washout algorithms automatically.
What is the payload capacity range for your Stewart Platforms? Can it be customized?
Versatility is our core strength. We offer a standard range of 6DOF platforms with payloads from 100 kg (220 lbs) for individual racing simulators up to 10,000 kg (22,000 lbs) for heavy industrial testing and cabin simulation. Since we manufacture our own actuators and servo systems, we can fully customize the payload, excursion range (stroke), and top-plate dimensions to meet your specific project requirements, whether for a compact driving rig or a massive offshore gangway test bench.
How does the “Active Heave Compensation” feature work for marine applications?
For offshore projects, our 6DOF platforms can operate in a specialized “stabilization mode.” By connecting to a Motion Reference Unit (MRU) or wave sensor, the platform receives real-time data about the vessel’s movement (roll, pitch, heave). The system then calculates and executes the inverse kinematic movements instantly to counteract the waves. This ensures the equipment mounted on top—such as a crane, gangway, or helipad—remains perfectly stable relative to the horizon or seabed, effectively cancelling out the sea state.
The Allcontroller Advantage: Why Go Electric?
Regardless of your specific 6DOF motion platform application, the industry is shifting toward All-Electric Servo Systems. MotionPlat provides electric solutions that offer:
Zero Maintenance: No oil leaks, no filter changes, and no noisy hydraulic pumps. Perfect for clean-room industrial environments or commercial offices.
Higher Fidelity: Electric actuators offer superior bandwidth and lower latency, essential for the “crisp” feeling needed in VR and driving simulation.
Energy Efficiency: Power is consumed primarily during movement, drastically reducing operating costs compared to always-on hydraulic pumps.
Ready to deploy your project? Whether you are building a simulator or an industrial test rig, MotionPlat engineers are ready to assist with your specific requirements. Contact us today to discuss the perfect motion solution for you.
