6DOF Motion Platform China Professional Motion Simulator Customization
Customized Solutions For 6DOF Motion Simulators
6DOF Motion Platform , Motion Simulator , Motion System .
The Allcontroller 6DOF (Degree of Freedom) motion platform is a device that simulates motion in 3 axes of rotation (pitch, roll, and yaw) and 3 axis of translation (heave, surge and sway). The platform is engineered to replicate the motions experienced by an object or vehicle in these six directions, creating an immersive simulation experience.
We always insist on providing you with high-quality and reliable motion systems.

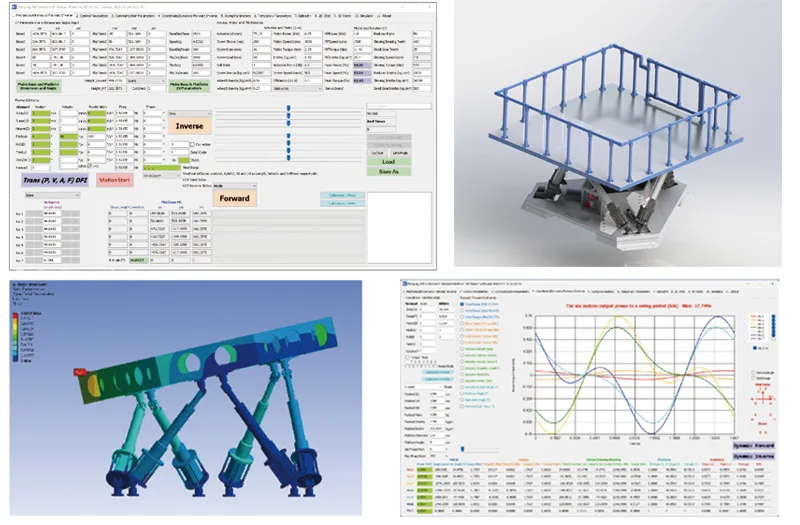

Our customized six-degree-of-freedom motion system includes: mechanical analysis, kinematic analysis, dynamic analysis, modal analysis, finite element analysis, control simulation and accuracy compensation, etc. It is completely built into the control software and supports multiple communication interfaces. Customers can access their own developed control software through the interface.

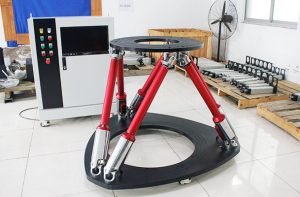

Different from other crank structure 6DOF motion platforms, we basically use a direct-connected servo electric cylinder structure, so the load will be greater.

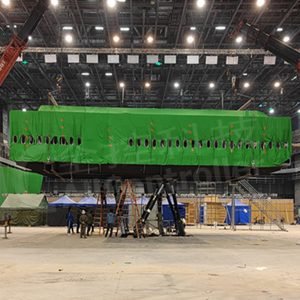

We have built a motion platform with a maximum load of 30 tons.
The core components of the six-degree-of-freedom platform system we produce are independently produced and developed by our company, which ensures that the motion systems we produce have the same quality standards.
The core components of the six-degree-of-freedom platform system we produce are independently produced and developed by our company, which ensures that the motion systems we produce have the same quality standards.
The platform motion works in the following ways.
1. Receive real-time data communication from the host computer (external communication).
2. Read the fixed action file script (need to synchronize with the start time of the external device).
3. Regular action (curve or surface movement) according to the set period and frequency.
4. Manual control (single-cylinder stroke independent test, single attitude independent test, back to the center, back to the origin, the platform of the switching control, that is, the platform will first be automatically down to the blocking position and then close the contactor)
Note: Receive external instructions can be the position data can also be the cylinder elongation data.

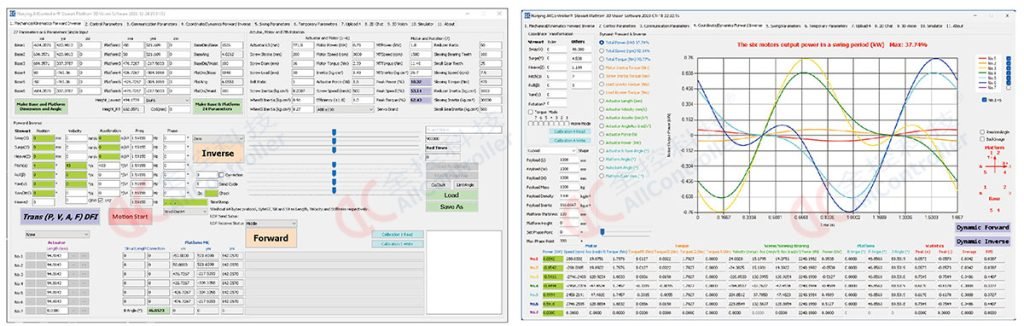

Platform articulation point coordinates, electric cylinder, motor, reducer parameter calibration, kinematics positive and negative solutions, conversion between amplitude, velocity, acceleration, frequency of external swing parameters four.
Overall,the motion platforms we produce provide a sufficient level of motion simulation to meet a wide range of uses. Whether it is a 3DOF motion platform or a 6DOF motion platform, we promise you that they have the same excellent performance and quality. You just need to make trade-offs between functionality and economy and choose the solution that suits you best.

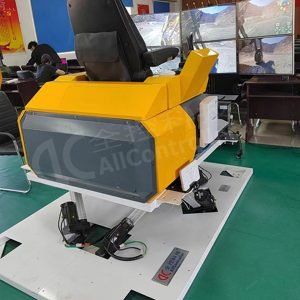

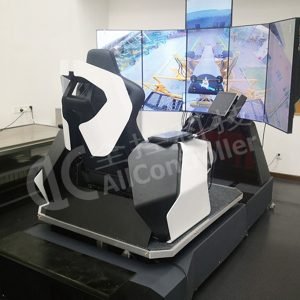

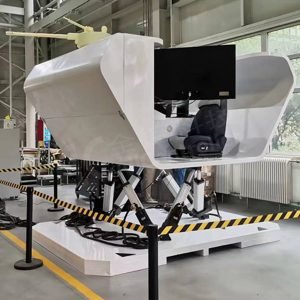

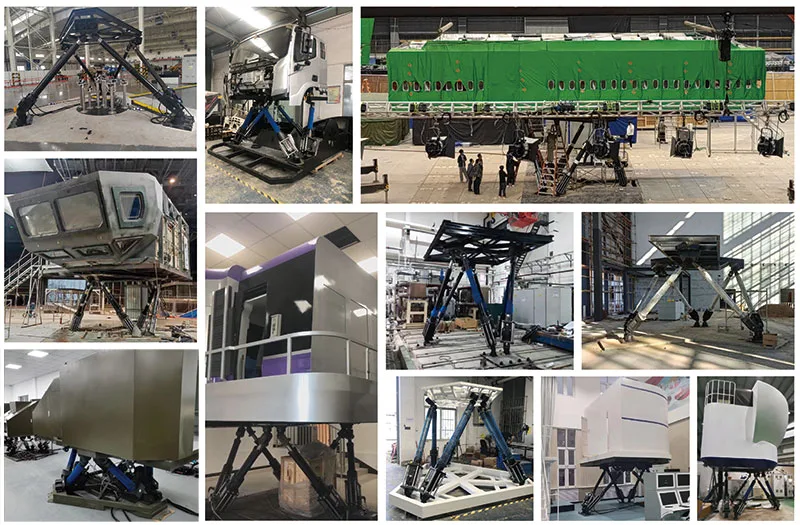

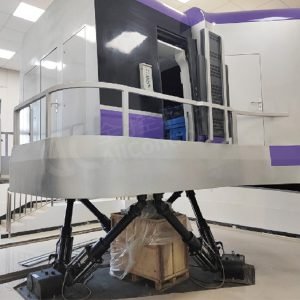

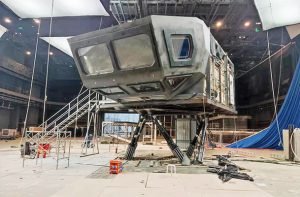

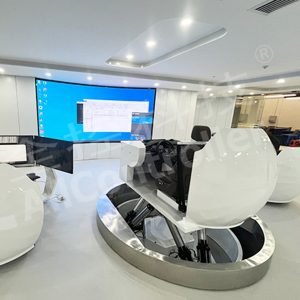

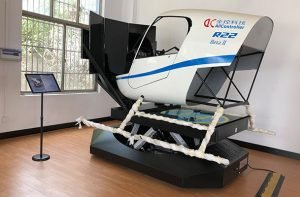

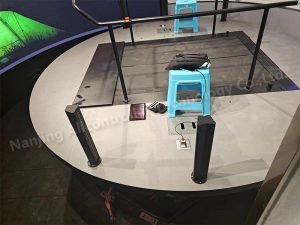

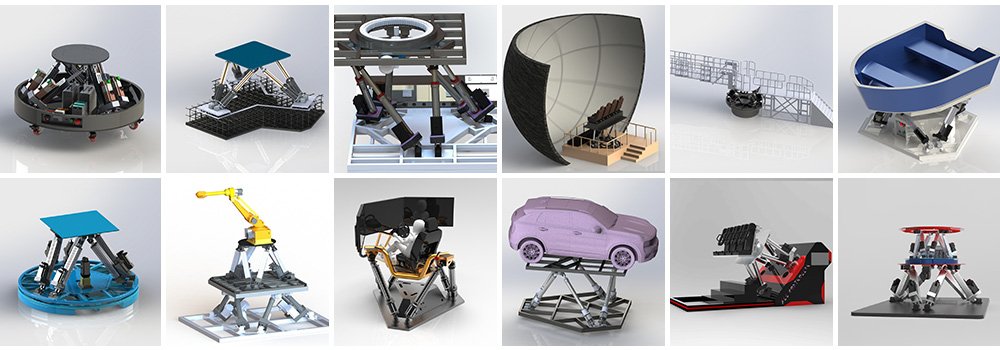

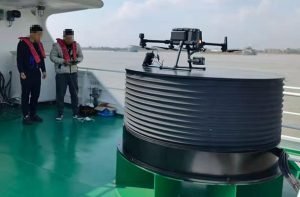

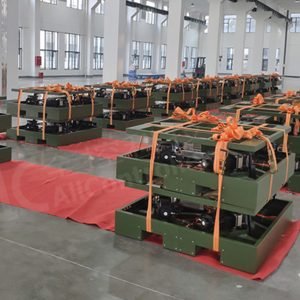

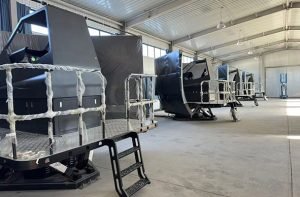

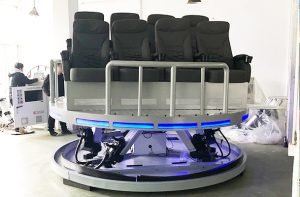

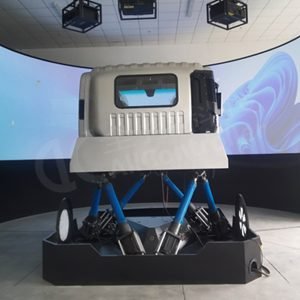

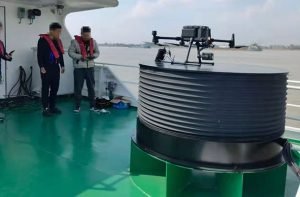

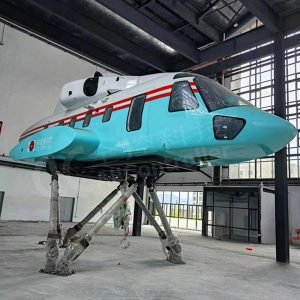

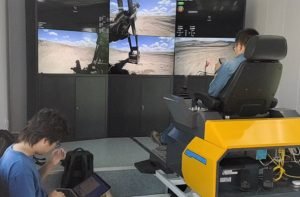

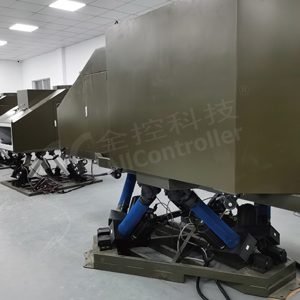

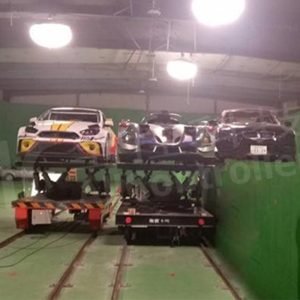

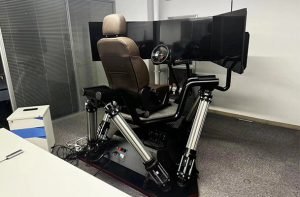

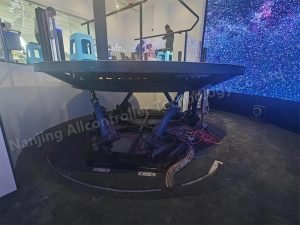

Examples of our products
Provide high-quality customization services
As a leading sports platform manufacturer, our core strength lies in providing personalized customized services for each customer. We know that each project has its own uniqueness, and it is necessary to design and manufacture the most suitable motion platform based on the customer’s specific needs and the actual site environment. Every project starts with a discussion to set its specifications. In the process of advancing motion system projects, Allcontroller will always assist customers to find specifications suitable for their projects.
Provide complete solutions
We have extensive experience in the innovation and application of technology, and can design and adjust according to various complex and specific needs to achieve precise and optimized solutions. We do this by putting our customers in direct dialogue with our design and project teams, allowing for truly personalized design and manufacturing. In this way, we are able to create products that truly fit your needs, allowing your business, project or research to move forward successfully.
We are your motion system design and manufacturing service provider, so we provide you with complete solutions throughout the entire process, including the best consulting, service, technical support, and maintenance services.
