Motion Platform & Motion System
Experience precise and dynamic motion simulation with our advanced Motion Platform, designed for training, testing, and immersive applications.
3DOF & 6DOF Motion Platform
ACE-3DOF-150
$ 7200
3DOF Motion Platform
Payload: 150kg
Size: 800*800*650mm
Heave: ±75mm , 330mm/s , 3m/s²
Roll: ±8° , 20°/s , 80°/s²
Pitch: ±8° , 20°/s , 80°/s²
Applications: VR motion seats , Small training , Compact single-seat cockpits

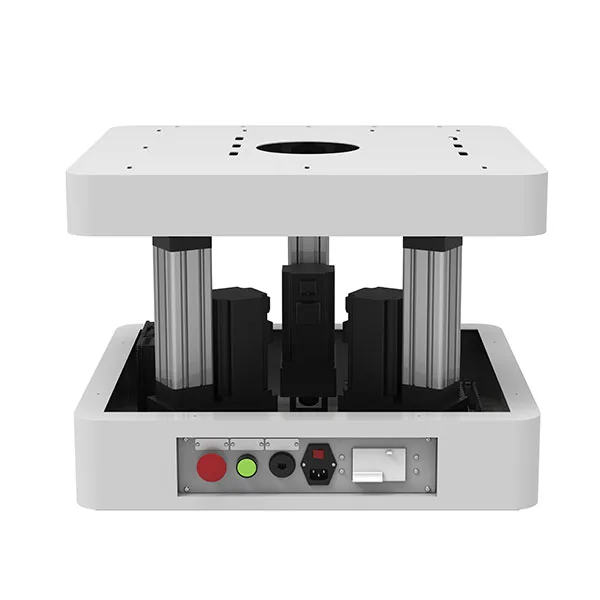

ACE-3DOF-300
$ 9500
3DOF Motion Platform
Payload: 300kg
Size: 800*800*650mm
Heave: ±100mm , 330mm/s , 3m/s²
Roll: ±19.4° , 20°/s , 80°/s²
Pitch: ±16.8° , 20°/s , 80°/s²
Applications: Single-seat driving , VR motion bases , Compact training , Lightweight test

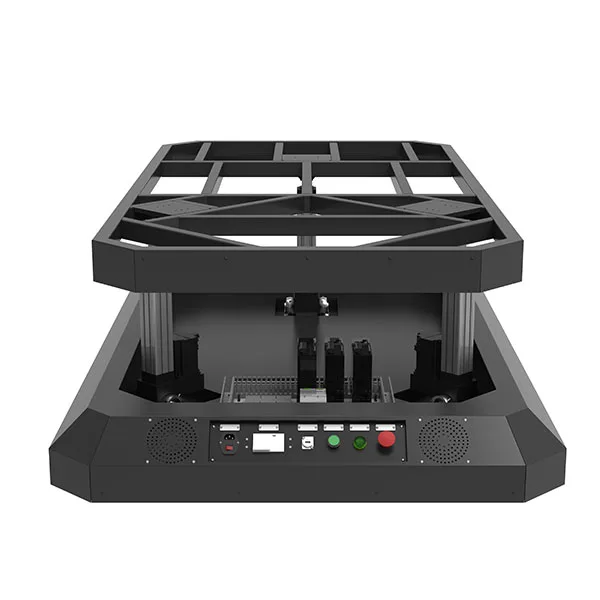

ACE-3DOF-500
$ 11800
3DOF Motion Platform
Payload: 500kg
Size: 2100*1700*950mm
Heave: ±110mm , 330mm/s , 3m/s²
Roll: ±10° , 20°/s , 80°/s²
Pitch: ±12° , 20°/s , 80°/s²
Applications: Driving / flight training rigs , VR motion bases , Industrial benches , fast deployment Projects

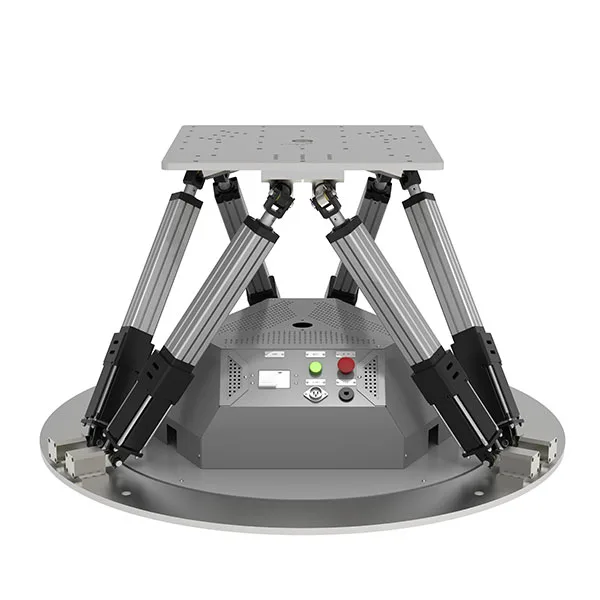

ACE-6DOF-150
$ 11200
6DOF Motion Platform
Payload: 150kg
Size: 820*820*780mm
Surge: ±187mm , 600mm/s , 5m/s²
Sway: ±170mm , 600mm/s , 5m/s²
Heave: ±110mm , 520mm/s , 7m/s²
Roll: ±22° , 50°/s , 150°/s²
Pitch: ±22° , 50°/s , 150°/s²
Yaw: ±25° , 70°/s , 200°/s²
Applications: R&D labs test , stabilization experiments , Robotics motion emulation , driving/flight rigs

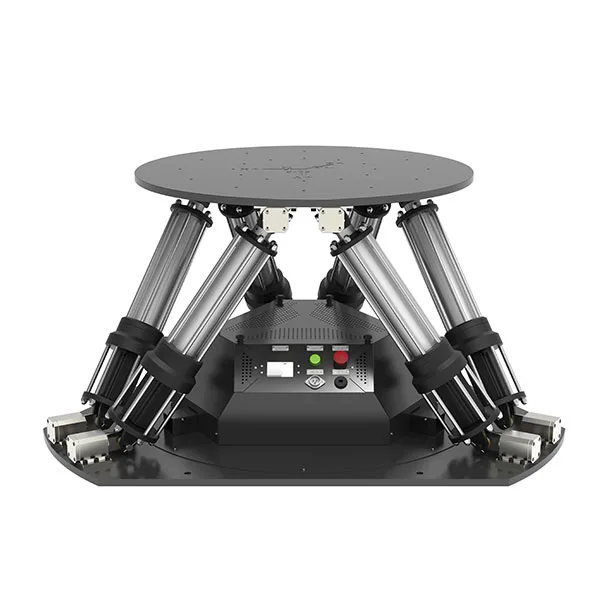

ACE-6DOF-300
$ 13500
6DOF Motion Platform
Payload: 300kg
Size: 1220*1220*750mm
Surge: ±135mm , 600mm/s , 5m/s²
Sway: ±130mm , 600mm/s , 5m/s²
Heave: ±110mm , 520mm/s , 7m/s²
Roll: ±21° , 50°/s , 150°/s²
Pitch: ±22° , 50°/s , 150°/s²
Yaw: ±25° , 70°/s , 200°/s²
Applications: Single-seat driving/flight rigs , VR motion bases , Lab fixtures & research motion emulation

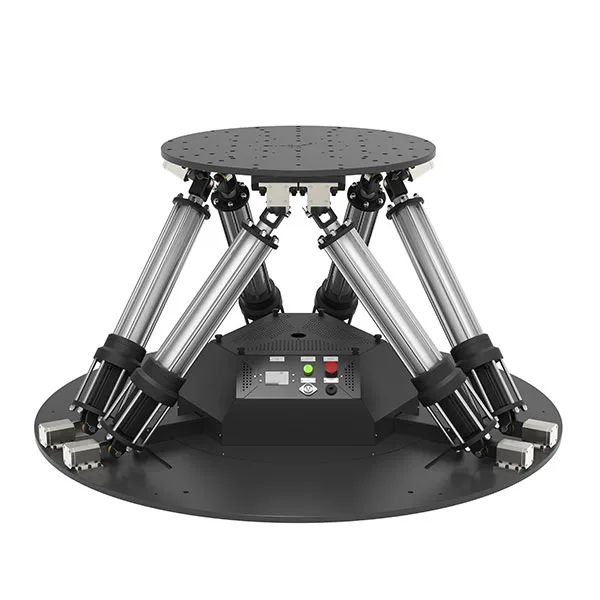

ACE-6DOF-500
$15500
6DOF Motion Platform
Payload: 500kg
Size: ⌀1700*1075mm
Surge: ±300mm , 600mm/s , 5m/s²
Sway: ±300mm , 600mm/s , 5m/s²
Heave: ±170mm , 520mm/s , 7m/s²
Roll: ±40° , 50°/s , 150°/s²
Pitch: ±35° , 50°/s , 150°/s²
Yaw: ±43° , 70°/s , 200°/s²
Applications: compact cockpits, HIL benches, robotics motion emulation, and laboratory motion reproduction

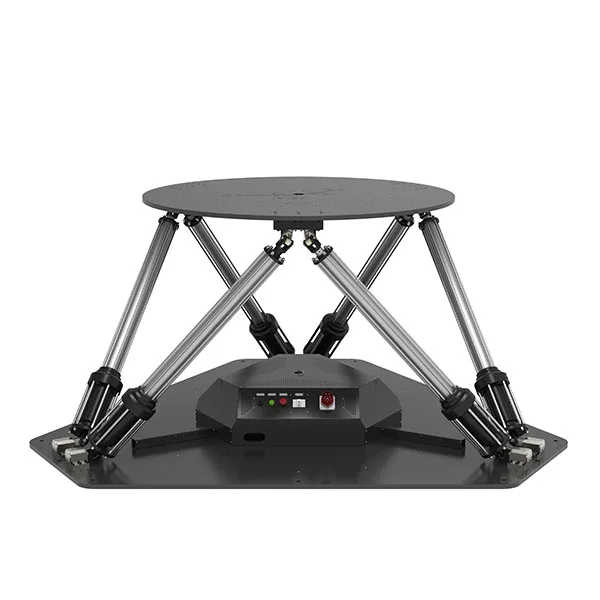

ACE-6DOF-800
$ 18800
6DOF Motion Platform
Payload: 800kg
Size: 1500*1500*1100mm
Surge: ±600mm , 600mm/s , 5m/s²
Sway: ±600mm , 600mm/s , 5m/s²
Heave: ±520mm , 700mm/s , 6m/s²
Roll: ±31° , 70°/s , 60°/s²
Pitch: ±31° , 70°/s , 60°/s²
Yaw: ±30° , 80°/s , 180°/s²
Applications: motion reproduction, lab test benches, and professional training rigs

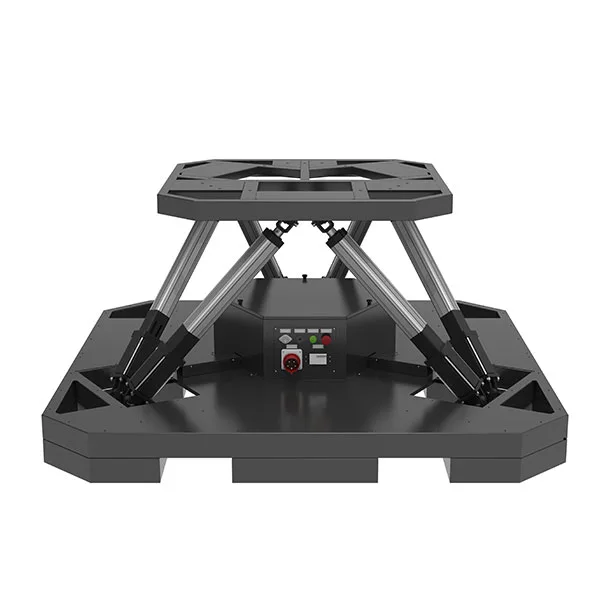

ACE-6DOF-1000
$ 21500
6DOF Motion Platform
Payload: 1000kg
Size: 1650*1650*1180mm
Surge: ±350mm , 600mm/s , 6m/s²
Sway: ±350mm , 600mm/s , 6m/s²
Heave: ±160mm , 400mm/s , 5m/s²
Roll: ±25° , 40°/s , 70°/s²
Pitch: ±25° , 40°/s , 70°/s²
Yaw: ±40° , 60°/s , 150°/s²
Applications: Driving / flight simulators , Military training scenarios , Scientific research & industrial testing

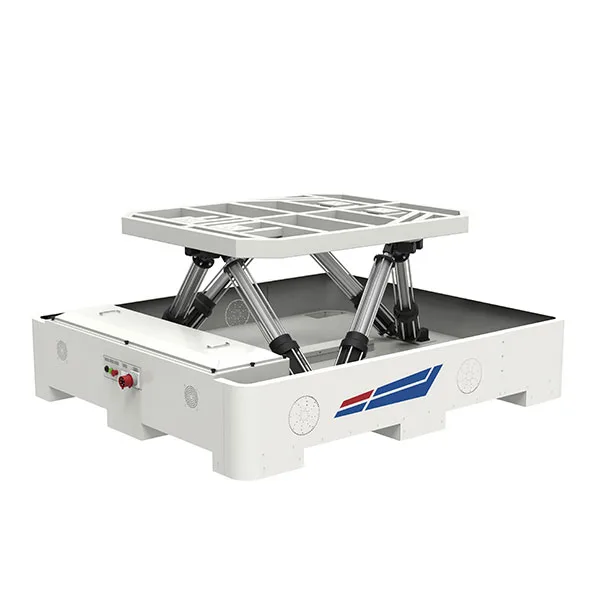

ACE-6DOF-1500
$ 26800
6DOF Motion Platform
Payload: 1500kg
Size: 1800*1800*1150mm
Surge: ±130mm , 600mm/s , 4m/s²
Sway: ±130mm , 600mm/s , 4m/s²
Heave: ±160mm , 400mm/s , 5m/s²
Roll: ±22° , 35°/s , 60°/s²
Pitch: ±22° , 35°/s , 60°/s²
Yaw: ±24° , 60°/s , 150°/s²
Applications: Driving / flight simulators , Military training scenarios , Scientific research & industrial testing , High-end entertainment
ACE-6DOF-2000
$ 36000
6DOF Motion Platform
Payload: 2000kg
Size: 1950*1950*1163mm
Surge: ±378mm , 500mm/s , 3m/s²
Sway: ±361mm , 500mm/s , 3m/s²
Heave: ±208mm , 250mm/s , 3m/s²
Roll: ±20° , 22°/s , 40°/s²
Pitch: ±20° , 22°/s , 40°/s²
Yaw: ±24° , 38°/s , 70°/s²
Applications: Heavy-duty stabilization , Sway / shaker table-type motion reproduction , Full-scale flight / driving rigs , Industrial test benches
6DOF Motion Simulator

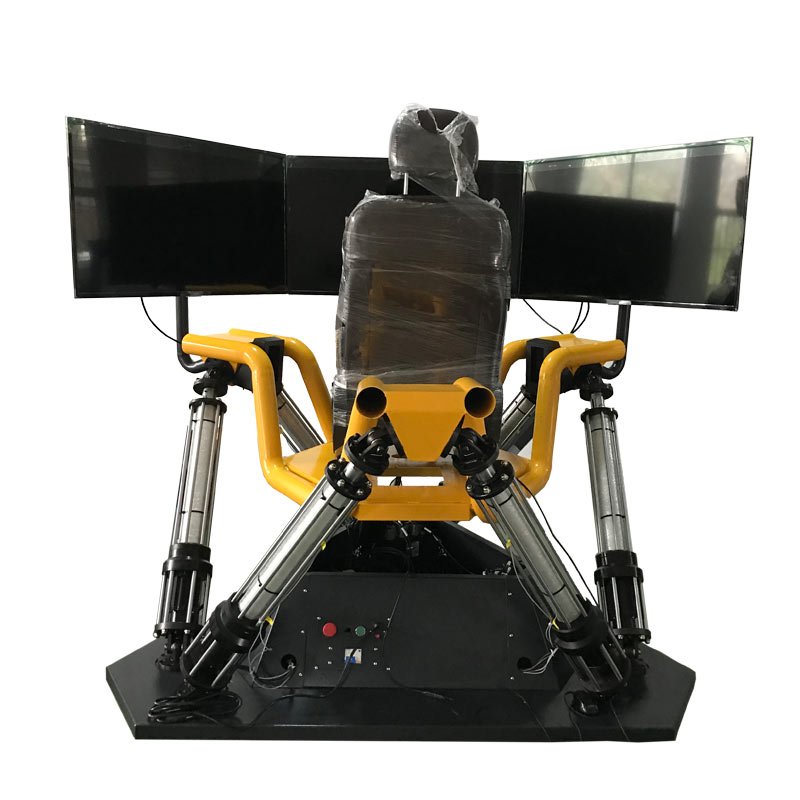

ACE-6SIM-Racing
$ 14500
6DOF Motion Simulator
Payload: 220kg
Size: 1700*1700*1750mm
Surge: 270 mm , 400mm/s , 4m/s²
Sway: 270 mm , 400mm/s , 4m/s²
Heave: 270 mm , 400mm/s , 4m/s²
Pitch: ±14° , 40°/s , 100°/s²
Roll: ±14° , 40°/s , 100°/s²
Yaw: ±15° , 40°/s , 100°/s²
Applications: Sim racing centers , Driver training & coaching , R&D / product demos

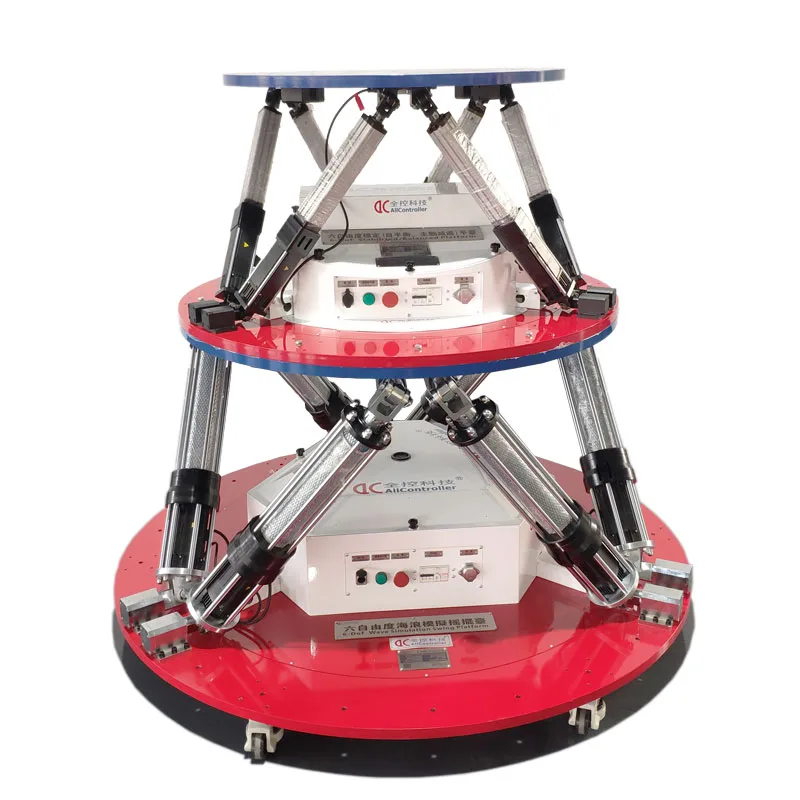

ACE-6DOF-Stablize
$ 29800
Stable motion platform
Size: Φ900mm*800mm*2set
Surge: ±250mm , 600mm/s , 5m/s²
Sway: ±250mm , 600mm/s , 5m/s²
Heave: ±160mm , 500mm/s , 5m/s²
Roll: ±20° , 30°/s , 100°/s²
Pitch: ±20° , 30°/s , 100°/s²
Yaw: ±25° , 40°/s , 120°/s²
Applications: Marine/offshore stabilization , Optical / imaging payload stabilization , Precision inspection
Choose reliable performance and assurance: Focus on your success
We know that equipment reliability is the cornerstone of your business continuity and profitability. Therefore, we offer a variety of stroke lengths and payload linear actuators for you to choose from. At the same time, we carefully design and manufacture each electric motion platform solution to ensure that they provide unparalleled stable operation performance, effectively improve equipment utilization, and directly translate into your business advantage.
In the face of increasingly complex simulation challenges, our professional technical strength is your backing. We provide cutting-edge system solutions with excellent performance and higher fidelity to not only meet your needs, but also help you exceed your goals. The professional global support team is well versed in technical details to ensure that no matter where you operate, with just one call, experienced experts will respond quickly and provide precise services to protect you.
Allcontroller is a leader in the design, development and manufacture of motion systems in China, we produce professional motion systems for a variety of applications (including flight, racing, ship, seismic, self-balancing, etc.) in the field of load ranging from 10KG to 50,000KG. Each motion system utilizes the EtherCAT industrial Ethernet bus and Ethernet dual network port, balancing real-time performance and flexibility. Support a variety of communication interfaces, including CAN, RS232, RS485, and can be interfaced with customer-developed software. We will regularly upgrade the software and hardware to meet the user’s various needs for customized development.
